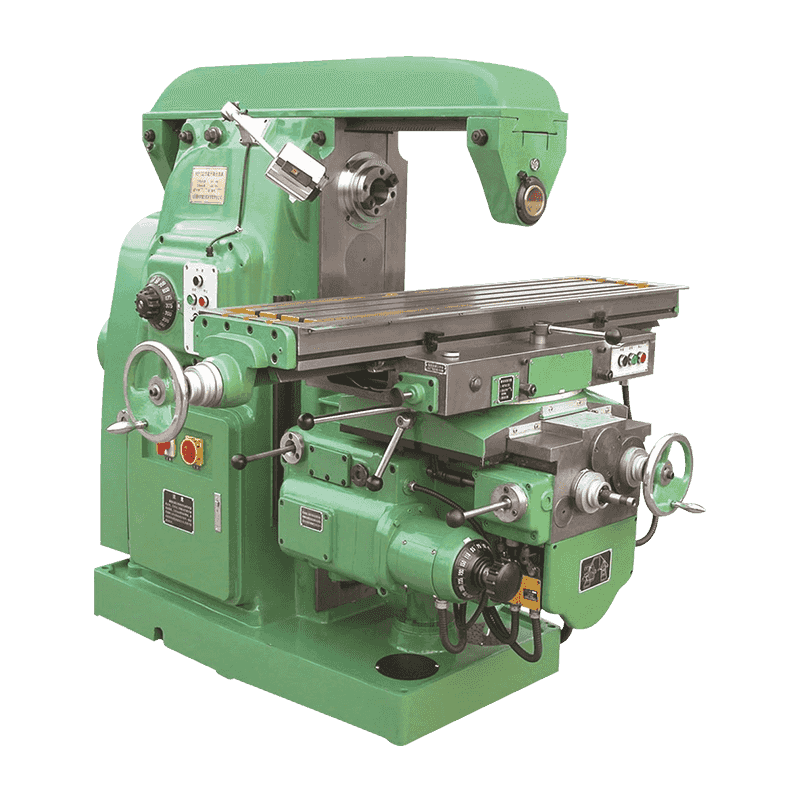

In domo / Productus / Ordinarius conversus, milling et EXERCITATIO Machina Series / X6132 universalis elevatio mensa milling apparatus X6132 universalis elevatio mensa milling apparatus
Product Introduction and Use
Machina instrumentum est genus fortis metallum secans apparatus instrumentum machina instrumentum habet fortes rigiditatem, latum pascuntur celeritate range et ferre grave onus eu. The spindle cone hole can be installed directly or through the accessories of various cylindrical milling cutters, circular milling cutters, forming cutters, face milling cutters, and other tools, suitable for processing various parts of the plane, slope, groove, hole, etc., is the ideal processing equipment for machinery manufacturing, mold, instrument, instrument, automobile, motorcycle, and other industries.
Productioio notitia
Main Structural Features
I, in basi, fuselage, workbench, slide, elevatis slide, et alia principalis components sunt cast ex summus viribus materials, et artificialis senescit curatio, ut diu-term stabilitatem machina instrumentum.
II, pelagus hastili afferentem ex machina instrumentum est taperati cylindro afferentem, pelagus hastile adoptas tres firmamentum structurae, quod ratio rigor est fortis, et pelagus est, et adoptans est magna, et cessi et certa est, et cesserunt et cessi est magna et subsisto est celeri et in cetu.
III, in horizontalis rotatione angulus ad mensam ± XLV °, expandit processus range de machina instrumentum. Pelagus transmissio partem et pascuntur pars opus tabulae adopt calces transmissionem structuram, celeritas ordinandus range est lata et celeritate mutatio est conveniens et ieiunium et celeritatem.
IV, in mensa x / y / z directionem habet manual feed, mobile feed et mobile ieiunium deinceps tres, feed celeritas potest occursum diversis dispensando; Et ieiunium feed potest facere workpiece pervenire processus positio cito, processui convenient et ieiunium et non-processui tempore breviabuntur.
V, x, y, z tres directionem duce par per ultra-audio coinching, praecisione molere et radi curatio, cum coactus lubricatae, amplio accurate, extend ad officium vitae machina.
VI. In lubricatae fabrica potest opprimere longitudinalis, horizontale, l, et vertical plumbum screw et dux rail ad lubricate, reducere ad gere, machina instrumentum et ensure ad operationem machinae instrumentum; Simul, in refrigerationem ratio mutat magnitudinem coolant influunt a adjusting ad COLLUM ad occursum diversis dispensando necessitates.
VII, machina instrumentum consilio in linea cum ergonomic principio, facile ad agunt; Quod operatio panel est disposito cum figurativa symbola, quae est simplex et intuitive.
Main Technical parametri machine Tools
| Taper de pelagus hastile foraminis | ISO50 7:24 |
| Distantiam ex fusum centrum linea cubitum vertical Ruidunt | 30-350 mm |
| Spnindle centrum linea suspensionem trabem | CLV mm |
| Fusum apertura | 29mm |
| Maximam gyrationis angulus mensam | ± XLV ° |
| Spindle Range / Series | XXX ~ MD RPM / XVIII Level |
| Mensa magnitudine | 1320x320 mm |
| Tabula Stroke Longitudinal / transversus / vertical | DCC (680/255 (CCXL) / CCCXX (CCC) mm |
| Tabula feed range longitudinalibus / transversus / vertical | Level XVIII 23.5-1180 / 23.5-1180 / 8-394 mm / min |
| Mensa celeriter-movens celeritas vertical / horizontali / vertical | 2300/2300/770 mm / min |
| Numerus, width et spacing of T informibus foramina de Workbench | 3/18/70 mm |
| Main Motor Power | 7.5KW |
| Pascere motricium potestate | 1.5kw |
| Machina dimensiones (L x W x II) | 2294x1770x1665 mm |
| Net Apparatus pondus | 2700/3000 kg |
TACTUS
Ningbo Hongjia CNC Technology Co., Ltd.
Ningbo Hongjia Cnc Technology Co., Ltd. Coepi in MMVI et constitutum in MMXVIII. Hoc sita in Qianwan Novum District, Ningbo urbem, Zhejiang Province Meridionalis Zonam Yangtze flumen Meridionalis Zhon '. Hoc est in coeptis specialiter in investigationis, progressionem, productio et venditionesque Cnc metallum secans apparatu. Sicut Sina X6132 universalis elevatio mensa milling apparatus supplier and custom X6132 universalis elevatio mensa milling apparatus companyCum fortis technica vires et dives industria experientia, Hongjia cnc est committitur providing customers cum provectus cnn solutions in occursum necessitates customers in diversis industries.
Plant et apparatu
Quid est nuntium
-
In hodiernae magis competitive vestibulum industria, societates sunt magisque postulans summus efficientiam, summus praecisione, et altus integrated machining solutions. Ningbo Hongjia CNC Technology Co., Ltd., profes...
Read More -
A EXERCITATIO et percussoque Machina Est machina instrumentum quod combines EXERCITATIO et percussoque functiones. Est praesertim ad terebram foraminibus et creare internum relatorum (percussoque) in materia ut ...
Read More -
I. Quid est aerospace industria potius horizontalis convertens centers ? Gravity Comments: vitare deformatio magna workpieces Vertical conversus problems, cum processus ...
Read More
Industria scientia
X6132 universalis elevatio mensa milling apparatus , Ut a Product of Hongjia Cnc, vicit magno fama in multis industries ad eius potens metallum secans facultatem et late applicability. Hoc machina instrumentum non solum rigidum satis resistere gravibus-onus cutting operationes, sed etiam instructa cum amplis feed celeritates ad curare stabilitatem et efficientiam processus processus. Eius fusum taper foraminis consilio est flexibile et variis cylindrici milling cutters, circulare milling cutters, formando milling cutters, faciei milling, ut plana, inutilis, instrumentation, automobiles, Motorcycles et alia industries.
Exquisita arte, mittentem optimum species
Hongjia cnc scit quod alta qualis est ab ultima studio details. The main components of X6132 Universal Lifting Table Milling Machine, such as the base, body, workbench, slide, lifting slide, etc., are all cast with high-strength materials and artificially aged, which effectively eliminates the internal stress of the material and ensures the long-term stability and precision retention of the machine tool. The spindle adopts tapered roller bearings, combined with a three-support structure, which not only has good system rigidity and strong load-bearing capacity, but is also equipped with an energy-consuming brake device, with large braking torque and rapid and reliable shutdown, providing a solid guarantee for high-precision processing.
Flexibile et variabilis, laminas in processus terminos
Ut in occursum diversificatur dispensando necessitatibus, in horizontalis gyrationis angulus ad worktable de x6132 universalis sublato mensa milling apparatus potest pervenire ± XLV °. Design magna expandit processus rhoncus machina instrumentum. In eodem tempore, pelagus transmission pars et pascuntur pars in worktable adopt ad calces transmissionem structuram, cum a celeritate et celeritate mutatio, faciens processus processus magis flexibile et agentibus processus processus magis flexibile et agentibus processui processus flexibilibus et efficientem processui processus flexibile et efficientem processui magis flexibile et agentibus processui processus magis flexibile et agentibus processui processu magis flexibile et agentibus processui processu magis flexibile et agentibus processui processu magis flexibile et agentibus processui processu magis flexibile et agentibus processui processus flexibilibus et efficient processus magis elit. In terms of pascentium modus, in X / y / z directiones machina tool habere tres modos: manual pascens, motorized pascens et motorized celeri pascens. Et pascens celeritate potest esse mollius accommodetur secundum diversas dispensando necessitates. Celeri pascens munus permittit workpiece cito pervenire processui situ, vehementer brevior non-processui et improvidus in altiore processus efficientiam.
Subtilitas vestibulum, extenditur muneris vitae
In verbis de detail processus, in X, y, et z duce cancellos de X6132 universalis erigens mensam milling apparatus fuisse ultrasonically extinguetur, praecisione ratio non solum significantly improved in processus accuratam, sed etiam effective initium vitae machinae instrumentum. Et lubrication fabrica potest vim lubricatae de plumbum Cochleas et dux cancellos in longitudinalibus, transversus, et vertical directiones, efficaciter reducendo ad gerunt ex machina instrumentum et efficientem et firmum operationem ex machina instrumentum. In addition, in refrigerationem ratio mollius adjusts coolant influunt a adjusting ad COLLUM ad occursum in occursum refrigerationem necessitatibus sub diversis dispensando conditionibus, ulterius improvidus processui qualis et efficientiam.
Humanized consilio, simplified operationem processus
Hongjia cnc plene considerari commodum humani, apparatus conversatione cum designing in X6132 universalis elevatio mensa milling apparatus. In altiore consilium machina instrumentum conformis principiis ergonomics facile operari et facilis ad usum. Imperium Panel adoptat graphical symbolum consilio, quae intuitiva facilis intelligere. Etiam primum, tempus operators potest cito dominum, quod magna reduces difficultatem operandi et amplio opus efficientiam.
